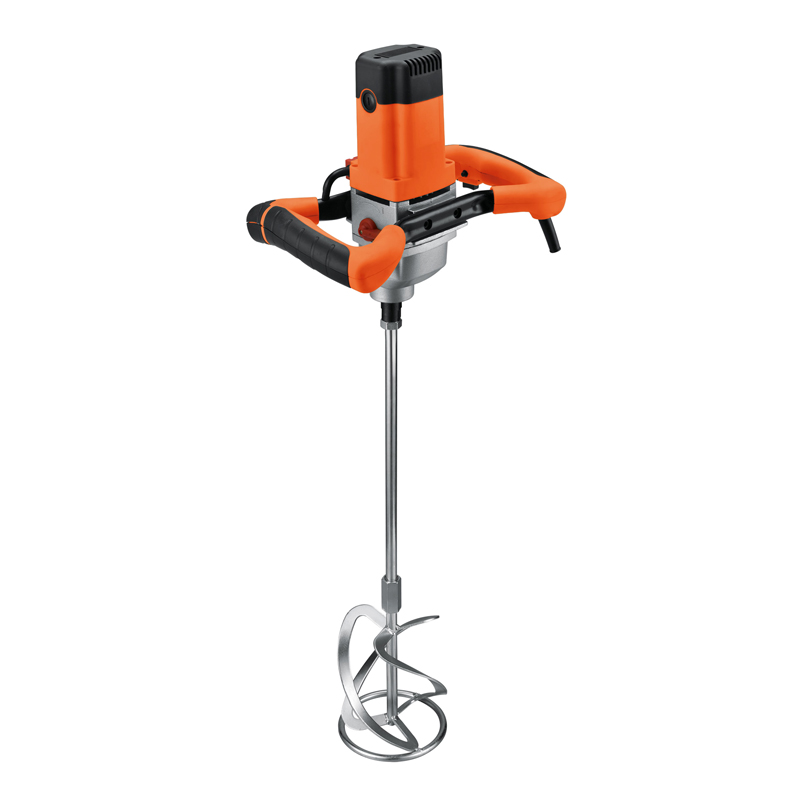

ZY-HM-140C3

Features:

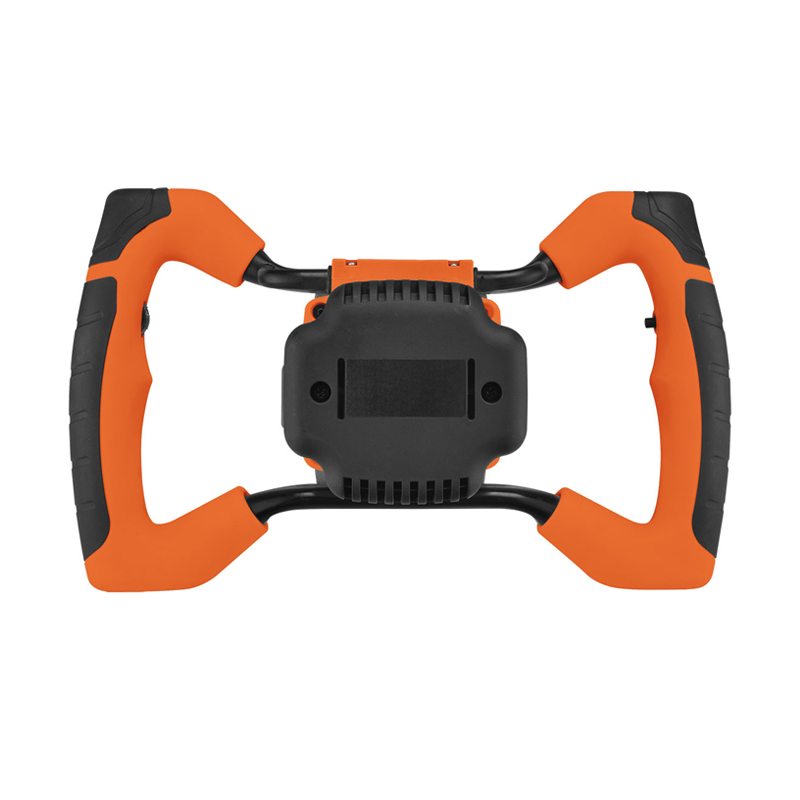

1. The steering wheel handle of racing car is powerful and powerful.
2. Soft start function, safe start.
3. Mechanical two speed free switching, first gear torque, second gear high efficiency.
4. 1-6 speed change control.
5. Brush holder structure, easy to replace carbon brush.

PRODUCT PARAMETERS

PRODUCT SPECIFICATION ZY-HM-140C3 ZY-HM-140C3-2
Rated Power 1800W 1200W
Rated Voltage 230V/110V 230V/110V
Frenquency 50Hz/60Hz 50Hz/60Hz
Speed I 150-430RPM 130-320RPM
Speed II 250-750RPM 230-540RPM
Paddle size K3 140*590mm K3 140*590mm
Tool connection M14 insert screw coupling M14 insert screw coupling
Power cord 2M 2M
Colour box 44x37x26 44x37x26
Master box 47x39x56 47x39x56
Packing QTY 2 2
N.W/G.W: 15.5/16.7 15.5/16.7
Loading QTY 540pcs/1050pcs/1320pcs 540pcs/1050pcs/1320pcs
